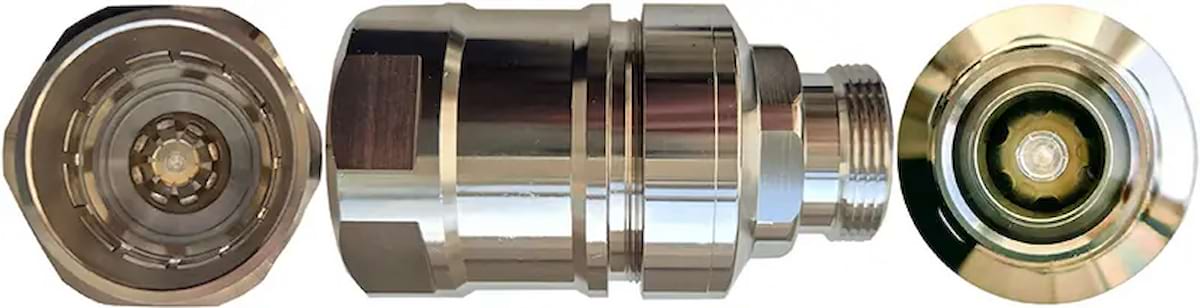

ConMarin 1 1/4" – 7/16" Female connector for RF-LLX 50 ohm
Velg variant
Beskrivelse
Female connector for RF-LLX 1 1/4" 50ohm radiatiing cable.
Watertightness according to IP 68.
Female connector for RF-LLX 1 1/4" 50ohm radiatiing cable.
Watertightness according to IP 68.
Temperature range
-45 – +85 [°C]
Socket
Tin Bronze
silver plated
Shell
Brass bar
trimetal plating
Insulator
TPX
Rubber/waterproof ring
Silicone rubber
Contact resistance
Center contact: ≤ 0.40 [mΩ]
Outer contact: ≤ 0.20 [mΩ]
Insulation: ≥ 5000 [MΩ]
Impedance
50 [Ω]
Dielectric withstanding voltage
2000
[V ms (AC)]
Gauge retention force
Center contact: ≥ 6 [N]
Cupling nut retention force
≥ 450 [N]
Cupling nut torque
20 – 28 [Nm]
PIM3
≤ -160 [dBc]
Vibration Test Method
IEC 60068-2-27 GB/T 2423.5
Mechanical Shock Test Method
IEC 60068-2-27 GB/T 2423.5
Durability
≥ 500 [cycles]
Salt spray
IEC 60068-2-11 GB/T 2423.17 (48H)
Sealing class
IP68
ROHS
Yes
Cables
RF-LLX 1-1/4" 50 ohm
Product no.
65477
| Frekvens [MHz] | - |
|---|---|
| 690 – 960 | ≤ 1.10 |
| 1700 – 2700 | ≤ 1.13 |
| 2700 – 3000 | ≤ 1.15 |
| 3000 – 3700 | ≤ 1.20 |
| [MHz] | [dB] |
|---|---|
| 690 – 960 | ≤ 0.08 |
| 1700 – 2700 | ≤ 0.12 |
| 2700 – 3000 | ≤ 0.15 |
| 3000 – 3700 | ≤ 0.20 |
